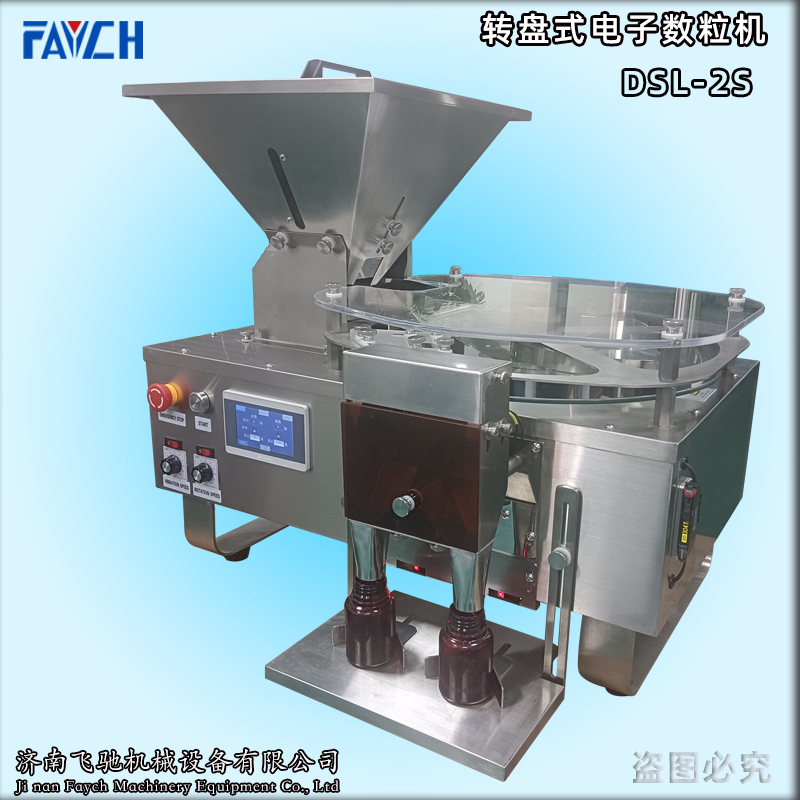

DSL-2S桌面式电子数粒机
-
DSL-2S Electronic Counting Machine
DSL-2S Electronic Counting Machine我公司采用国际上最先进的振动式通道下料,振荡器无极调速,触摸屏PLC智能控制,光纤感测头计数、系统自检、故障指示报警、自动停机等先进技术,机身采用全不锈钢材质,按GMP标准设计,是集光电机一体化的高科技药品计数设备。
Our company adopts the internationally advanced vibrating channel,Oscillator variable frequency speed , PLC intelligent control of touch screen , optical fiber-sensitive head count, system self-inspection, fault indication alarm, automatic shutdown and other advanced technology.According to GMP standards, the body uses all stainless steel quality ,which is a high-tech medical counting device integrated in the collective motor.
本机属于准桌面型数粒设备,设计合理,结构紧凑,使用方便,数粒效率高,可广泛应用于多种不同形状、大小的片剂、胶囊、丸剂、透明软胶囊等药品的快速计数装瓶,计数装瓶精度达到国内外同类产品先进水平。
This machine belongs to the quasi desktop type counting device with reasonable design and compact structure. The machine is easy to operate and high-efficiency, which can be widely used in a variety of different shapes and size tablets, capsules, pills, transparent soft capsules and other drugs counting .The counting accuracy reach advanced levels in the world.
基本参数
Basic parameters
产品型号:DSL-2S
1
速度
600-2000粒/分钟
2
适用范围
硬胶囊,软胶囊,药片,药丸等
3
控制方式
触摸屏控制
4
计数方式
红外探测
5
适用尺寸
胶囊型号00#-5# 片剂直径5-25MM
6
计数误差
±0.3%
7
电源电压
220V/50-60Hz /100W
8
净重(千克)
50kg
9
外型尺寸
735mmX580MMX720MM
10
机器材质
主要部件材质不锈钢304(0Cr18Ni9)
数粒机配置清单
Counting machine configuration list
序
名称
规格
品牌
数量
1
触摸屏
DOP-103BQ
台湾台达
1
2
PLC控制器
DVP14SS211T
台达
1
3
光纤传感器
FS-N41N
日本基恩士
1
4
光纤感测头
FU-E40
日本基恩士
1
5
电机
4RK25RGN-C
晟彪
1
6
振荡器
自制
飞驰
1
7
继电器头
RXM2LB2BD
德国施耐德
1
8
继电器底座
RXZE1M2C
德国施耐德
1
9
固态继电器
SSR-10 DD
台湾阳明
2
10
开关电源
LRS-100-24
台湾明纬
1
11
电磁铁
自制
飞驰
2
-
